Fast response time
Wide variety of gases and applications

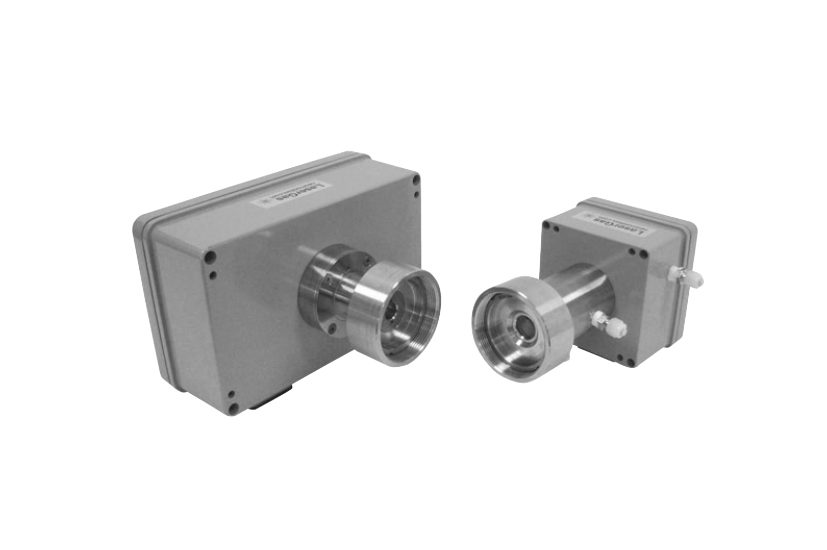

Compact designLaserGas II SP Compact Monitor

Description
Derived from the standard Single Path instrument. The Compact monitor is optimized for short distance measurement in the range 10 to 100 centimeters. It is a non-contact optical measurement method also known as in-situ.

LaserGas™ II SP Compact offers a wide variety of gases, measurement and temperature ranges and dual gas measurements. LaserGas™ II SP has also a wide range of Ex-certifications, including IECEx, ATEX, CSA. The instrument does not require any consumables and does not require regular maintenance.

The absence of extractive conditioning systems further improves availability of the measurements and eliminates errors related to sample handling. Once power,data lines and purge are connected, the instrument is ready to use and measurements are performed in real-time.
It also has smaller physical dimensions compared to the LaserGas™ II SP.

Certifications and approvals

  • IECEx/ATEX Zone 1
  • IECEx/ATEX Zone 2
  • CSA Class 1/Div 2 A,B,C,D
  • EURO VI for NH3

Gases

  • CH4
  • CO %
  • CO2 %
  • CO ppm
  • CO2 ppm
  • H2O %
  • H2O ppm
  • H2S
  • HCl
  • HCl in VCM
  • HCN
  • HF
  • N2O %
  • N2O ppm
  • NH3
  • NO
  • NO2
  • O2
  • C2H2
  • C2H4
  • LIST OPP: NH3+H2O, HCl+H2O, HCl + CH4, HCN + NH3, HF + H2O, CO+CO2, CO+H2O, CO+CH4, H2S + CO2, O2+temp.

Features

  • Response time down to 1 second
  • No gas sampling: in-situ measurement
  • No interference from background gases
  • No moving parts, no consumables
  • ATEX and CSA certified
  • Can measure through very thin nozzles <10 mm diameter
  • Optimized for very short distance measurements across pipes and along short cells
  • Compact design
  • No zero drift
  • Stable calibration

Applications

  • Chemical industry
  • Petrochemical industry
  • Metal industry
  • Power plants
  • Waste incinerators
  • Cement industry
  • Automotive industry
  • Scrubber technology
  • Glass industry
  • PVC production
  • Pulp and paper
  • …and more

Customer benefits

  • In-situ monitoring
  • Highly reliable real time analyzer
  • Low maintenance cost
  • Reduce emission to the environment
  • Easy to install and operate
  • Reduce daily operation costs
  • Optimize process
  • Well proven measurement technique
  • Low purge flow
  • Tailor made to your process

Documentation


LG II SPC CSA Certificate LG II SPC CSA Certificate
LG II SPC ATEX Presafe LG II SPC ATEX Presafe
LG II SPC IECEx Cat 2 LG II SPC IECEx Cat 2
LG II SPC IECEx Cat 3 LG II SPC IECEx Cat 3
LaserGas™ II SP compact LaserGas™ II SP compact
LaserGas-II-Compact LaserGas-II-Compact
