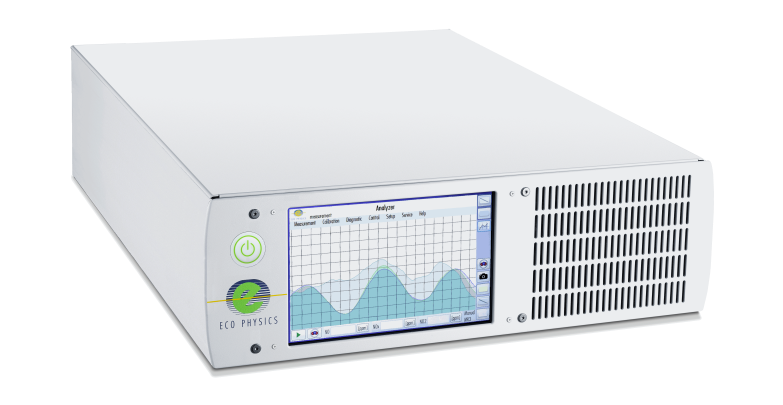

ECO PHYSICS nCLD EL S
Range: 5 ppm –5’000 ppm
Minimum detectable concentration : 0.5 ppm
Parameters: NO/ NOx
The nCLD EL S is the next generation in single-channel NO/NOX measurement. Unique in speed and precision, the nCLD EL S is modular designed and allows the continuous measurement of concentrations in the range of parts per million. The measuring principle complies with international emissions monitoring regulations and its new and intuitive user interface individually displays and connects to other instruments’ data. connects to other instruments’ data.
Precise and Reliable
The nCLD EL S with steel converter fulfills the specific requirements for exact and economical monitoring of NO/NOX in order to ensure compliance with relevant norms and regulations. All necessary data, such as calibration history, instrument status and warning conditions are continuously stored and available anywhere and at any time. The analyzer is designed for either mobile or stationary operation in line with an existing gas preconditioning unit, which ensures quality control as well as staying within threshold values. The calibration and adjustment of the unit runs quickly and automatically, ensuring unsurpassed precision and reliability.
User Friendliness
The new touch sensitive graphical user interface enables the user to individually adjust the instrument operation and data management according to his/ her needs and applications. The bright 7” monitor gives a clear overview and allows numerical and graphical display of values. Multiple digital in- and outputs guarantee a maximal connectivity and flexibility for the remote operation, control and maintenance of the nCLD EL S.
Compact, Modular and Intelligent!
The nCLD EL S is manufactured in a new compact and modular layout, in which each essential component of the chemiluminescence analyzer hosts its own CPU and interacts with other CPUs by BUS-communication. This assembly increases accessibility and serviceability by reducing wiring and piping. The measurement principle will conform to the standard method for NOX-detection in stationary source emissions (EN 15267).
| Analyzer type |
single chamber CLD for measurement of NO or NOX |
| Measuring ranges |
four freely selectable ranges from 5 ppm –5’000 ppm |
| Min. detectable concentration* |
0.5 ppm |
| Noise at zero point (1σ)* |
0.25 ppm |
| Lag time |
<3 sec |
| Rise time (0-90%) |
<3 sec |
| Temperature range |
5-40 °C |
| Humidity tolerance |
5-95% rel. h (non-condensing, ambient air and sample gas) |
| Dry air use for O3 generator |
internally generated (no external supply gas required) |
| Sample flow rate |
0.04 l/min |
| Input pressure |
ambient externally stabilized within ±3 mbar |
| Power required |
300 VA, 250 VA external membrane pump |
| Supply voltage |
100–240 V/50–60 Hz |
| Interface |
USB(3x), HDMI, Bluetooth, RS232 (w/o 9 pin connector), LAN, WLAN |
| Dimensions |
height: 133 mm (5¼”)
width: 450 mm (19”)
depth: 540 mm (21.2”) |
| Weight |
16 kg (35 lb) without pump |
| Delivery includes |
nCLD EL S analyzer, power cable, USB-LAN adapter |
| Standard |
nCLD EL S NO/NOX analyzer with internal steel converter |
| Options |
· metal converter
· toggle mode for NOX measurement
· inlet filter
· rack mount slides
· inlet filter
· USB-RS232 9pin connector
· FTDI-RS232-USB cable
· 24 V operation incl. DC vacuum pump
· analog output (external box): 0-10 V ; 4-20 mA into 500 Ω max. |
| |
|
| *Depending on filter setting. |
| Connectivity properties are country-specific. |
| ECO PHYSICS reserves the right to change these specifications without notice. |
