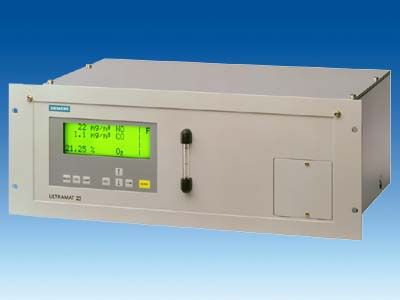

Versatile , economical, multi- component NDIR + O2 analyzer for continuous measurement ..Siemens Ultramat 23

 With its multi-component design with NDIR technology for the measurement of up to three IR active constituents, the ULTRAMAT 23 is extremely economical and space saving. The integrated automatic calibration function using ambient air is a unique advantage. A check with calibration gases is necessary once a year only.

Menu-guided operation with plain text allows users and service personnel to operate the device immediately. The information in the logbook allows preventive maintenance.

The multi-layer detectors used guarantee high selectivity and reduced water vapour interference. The measuring cells used are robust and resistant and can easily be cleaned in case of faults pollution, induced by faults in the sample preparation leading to soiling.

The sample cell is robust and can be easily cleaned.

Low-cost multi- component NDIR + O2 analyzer for continuous measurement . Widely used in various applications , such as combustion control, flue gas emissions , biogas, etc. Auto calibration eliminates use of test gases.


Catalog Extract Ultramat 23 Catalog Extract Ultramat 23
  request information >

Ankersmid engineers, delivers and performs service on analysis equipment, to complete CEM systems and process systems in associated analysis houses. They are used in industrial process technology, laboratories, air force, stable technology and biogas installations
