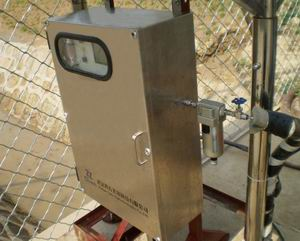

A complete biogas analysis system biogas analyzer Gasboard-320: CH4, CO2, H2S and O2 Wall-Mounted Biogas Analysis System

A complete wall-mounted biogas analysis system consists of a rack type biogas analyzer Gasboard-3200, metal case, and gas conditioning system. Gasboard 3200 infrared biogas analyzer can be used for measurement of the concentration of CH4, CO2, H2S and O2  in sample gases simultaneously . It is based on the single source two beams non-dispersion infrared (NDIR) method for CH4, CO2, fuel cell method (ECD) for H2S and O2. The general application is landfill, anaerobic digestion and other fermentation Processes.

  • Up to 4 gases measurement with combination of NDIR and ECD gas sensor technology
  • Simple construction with pulsable infrared source and two beams technology
  • Constant temperature control for gas bench for high stability
  • 320*240 LCD with menu operation.
  • Repeatability: ±0.5% FS
  • Linearity: ±1% FS
*For more information view the brochure


Brochure Wall-Mounted Biogas Analysis System Brochure Wall-Mounted Biogas Analysis System
