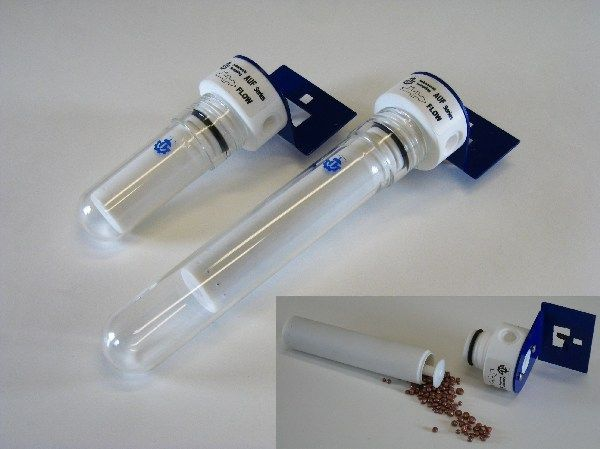

 adsorption filter, catalysis various materials, available with various options such as liquid alarm AAM Absportion filter

Application
The Ankersmid Universal filters are well known for their reliability and experience for adsorption of components in a gas that can cause interference in the Gas analysis
The design also ensures a separation of your liquid droplets. This is collected at the bottom.
The AAM series is based on the universal AUF filter

Because the standard filter element size and functionality is also compatible with other brands. Ab-/adsorptie The patterns are easy to change without tools.
Optionally, the filter can be provided with a fluid sensor, automatic drain, fluid collecting container or a combination thereof.

Description
The gas flows up through the bottom of the pattern.

  • Ad-/absorptie various materials: activated carbon, Purafil ®, Silica gel
  • Pattern length: 75 or 150 mm
  •  PTFE heads and pattern
  •  Glass enclosure
  • Closed · or condensate output at the bottom to include condensate alarm
A glass enclosure has the advantage that you can observe a glance pollution, since the filter elements from outside to inside filter.
A mounting bracket is available for easy mounting on the AMS modular system.
  • Universal use
  • Modular construction
  • Great diversity in materials
  • Wall mounting
  •  Easy maintenance

Documentation


 AAM Adsorption Material Filters AAM Adsorption Material Filters
